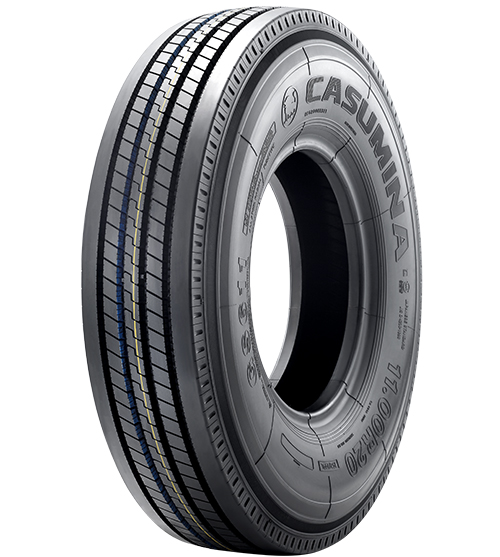

GS611
DESCRIPTION
– Tire used for long distance vehicles.
FEATURES
– Meets standards: Jis D4230
– Special steel structure with high load bearing, good impact resistance on a variety of road.
– Runs well on many complex sugars.
– The tire is designed for orientation, good navigation, less fuel consumption.
– Available wide main thorn there are many small cross, alternating help, fast drainage, to control when running, good heat dissipation, nonstick guys rock.
– Wide running face, big thorn of two shoulder tires firmly, limited wear irregularly, lasting life, high durability.
– Suitable for highway vehicles, high speed road.
SPECIFICATIONS
| No | Size | PR | Type | Index | Inflation pressure | Max. Load | Max. Speed | Width | Overal diameter | Tread depth | Weight | Rim width | |||
| TT/TL | Load | Speed | kgf/cm2 | PSI | Single/kg | Dual/kg | km/h | mm | mm | Mm | kg | inch | |||
| 1 | 10.00R20 | 18 | TT | 149/146 | L | 9.49 | 135 | 3250 | 3000 | 120 | 278 | 1054 | 16 | 59 | 7.50 |
| 2 | 10.00R20 | 18HD | TT | 150/146 | L | 9.21/9.49 | 131/135 | 3350 | 3000 | 120 | 278 | 1054 | 16 | 59 | 7.50 |
| 3 | 11.00R20 | 16 | TT | 150/146 | L | 8.43 | 120 | 3350 | 3000 | 120 | 293 | 1085 | 16 | 65 | 8.00 |
| 4 | 11.00R20 | 18 | TT | 152/149 | L | 9.49 | 135 | 3550 | 3250 | 120 | 293 | 1085 | 16 | 66 | 8.00 |
| 5 | 11.00R20 | 18HD | TT | 153/149 | L | 9.21/9.49 | 131/135 | 3650 | 3250 | 120 | 293 | 1085 | 16 | 66 | 8.00 |
| 6 | 11R22.5 | 16 | TL | 146/143 | M | 8.43 | 120 | 3000 | 2725 | 130 | 279 | 1054 | 16 | 60 | 8.25 |
| 7 | 11R22.5 | 18 | TL | 148/145 | M | 8.64 | 123 | 3150 | 2900 | 130 | 279 | 1054 | 16 | 62 | 8.25 |
| 8 | 295/80R22.5 New | 18 | TL | 154/149 | M | 8.50 | 120 | 3750 | 3250 | 130 | 301 | 1048 | 15 | 57.9 | 9.00 |
| 9 | 295/75R22.5 | 16 | TL | 146/143 | M | 8.43 | 120 | 3000 | 2725 | 130 | 298 | 1014 | 15 | 53 | 9.00 |
| 10 | 295/75R22.5 | 18 | TL | 149/146 | M | 8.64 | 123 | 3250 | 3000 | 130 | 298 | 1014 | 15 | 55 | 9.00 |
| 11 | 12.00R20 | 20 | TT | 152/149 | K | 9.49 | 135 | 3550 | 3250 | 110 | 315 | 1125 | 16.3 | 76 | 8.50 |
| 12 | 225/75R22.5 | 16 | TL | 140/137 | M | 8.3 | 120 | 2500 | 2300 | 130 | 250 | 926 | 12.79 | 46.3 | 7.5 |
