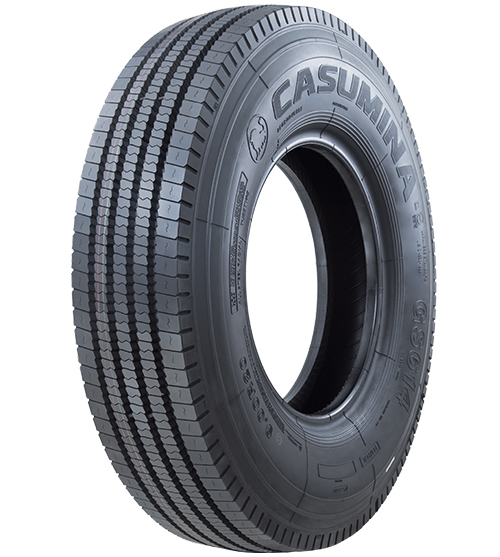

GS614
DESCRIPTION
– Tire used for long distance vehicles.
FEATURES
– Meets standards: Jis D4230
– Special steel structure with high load bearing, good impact resistance on a variety of road.
– Runs well on many complex sugars.
– The tire is designed for orientation, good navigation, less fuel consumption.
– Available wide main thorn there are many small cross, alternating help, fast drainage, to control when running, good heat dissipation, nonstick guys rock.
– Wide running face, big thorn of two shoulder tires firmly, limited wear irregularly, lasting life, high durability.
– Suitable for highway vehicles, high speed road.
SPECIFICATIONS
| No | Size | PR | Type | Index | Inflation pressure | Max. Load | Max. Speed | Width | Overal diameter | Tread depth | Weight | Rim width | |||
| TT/TL | Load | Speed | kgf/cm2 | PSI | Single/kg | Dual/kg | km/h | mm | mm | Mm | kg | inch | |||
| 1 | 9.00R20 | 16 | TT | 144/142 | L | 9.13 | 130 | 2800 | 2650 | 120 | 258 | 1018 | 15 | 52 | 7.00 |
| 2 | 9.00R20 | 16HD | TT | 147/142 | L | 9.21/9.13 | 131/130 | 3075 | 2650 | 120 | 258 | 1018 | 15 | 52 | 7.00 |
