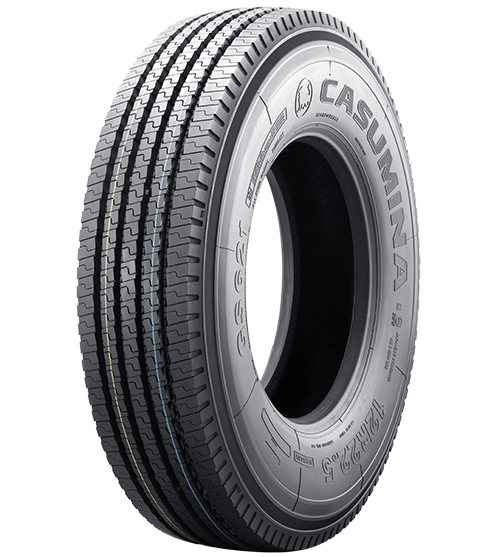

GS621
DESCRIPTION
– Tire used for long distance vehicles.
FEATURES
– Meets standards: Jis D4230
– Special steel structure with high load bearing, good impact resistance on a variety of road.
– Runs well on many complex sugars.
– The tire is designed for orientation, good navigation, less fuel consumption.
– Available wide main thorn there are many small cross, alternating help, fast drainage, to control when running, good heat dissipation, nonstick guys rock.
– Wide running face, big thorn of two shoulder tires firmly, limited wear irregularly, lasting life, high durability.
– Suitable for highway vehicles, high speed road.
SPECIFICATIONS
| No | Size | PR | Type | Index | Inflation pressure | Max. Load | Max. Speed | Width | Overal diameter | Tread depth | Weight | Rim width | |||
| TT/TL | Load | Speed | kgf/cm2 | PSI | Single/kg | Dual/kg | km/h | mm | mm | Mm | kg | inch | |||
| 1 | 11R22.5 | 16 | TL | 146/143 | M | 8.43 | 120 | 3000 | 2725 | 130 | 279 | 1054 | 16 | 60 | 8.25 |
| 2 | 11R22.5 | 18 | TL | 148/145 | M | 8.64 | 123 | 3150 | 2900 | 130 | 279 | 1054 | 16 | 62 | 8.25 |
| 3 | 12R22.5 | 18 | TL | 152/148 | M | 8.64 | 123 | 3550 | 3150 | 130 | 300 | 1085 | 16 | 68 | 9.00 |
| 4 | 295/80R22.5 | 16 | TL | 152/148 | M | 8.64 | 123 | 3500 | 3150 | 130 | 298 | 1050 | 16 | 60 | 9.00 |
| 5 | 295/80R22.5 | 18 | TL | 154/149 | M | 8.64 | 123 | 3750 | 3250 | 130 | 298 | 1050 | 16 | 60 | 9.00 |
| 6 | 315/80R22.5 | 16 | TL | 151/148 | L | 7.73 | 110 | 3450 | 3150 | 120 | 312 | 1075 | 16 | 66 | 9.00 |
| 7 | 315/80R22.5 | 18 | TL | 154/150 | L | 8.43 | 120 | 3750 | 3350 | 120 | 312 | 1076 | 16 | 66 | 9.00 |
| 8 | 275/80R22.5 | 16 | TL | 149/146 | L | 8.50 | 121 | 3250 | 3000 | 120 | 272 | 1012 | 16.3 | 51 | 8.25 |
| 9 | 8.25R20 New | 16 | TL | 141/140 | K | 8.50 | 121 | 2575 | 2500 | 110 | 235 | 962 | 14.5 | 42 | 6.5 |
