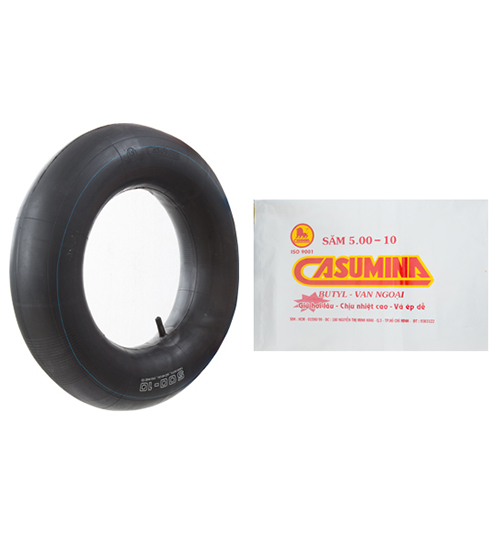

LIGHT TUBES
DESCRIPTION
– Used for automotive tires Bias (nylon)
FEATURES
– Meets standards: Jis D4231
– Manufactured by chain, modern technology , Butyl rubber use, tough, keeping slightly longer, high heat resistance, and easy.
SPECIFICATIONS
| No | Size | Width | Double fold width | Tube thickness | Weight | Valve type |
| mm | mm | mm | Kg | |||
| 1 | 4.00-8 | 120 | 307 | 1.3 | 0.37 | JS87C |
| 2 | 5.00-10 | 145 | 380 | 1.4 | 0.62 | TR13 |
| 3 | 4.00/4.50-12 | 120 | 450 | 1.6 | 0.60 | TR13 |
| 4 | 5.00/6.00-12 | 150 | 450 | 1.5 | 0.80 | TR13/TR15 |
| 5 | 6.00/6.50-12 | 170 | 473 | 1.5 | 0.87 | TR13 |
| 6 | 5.00/6.00-13 | 170 | 500 | 1.6 | 1.00 | TR13/TR15 |
| 7 | 6.00/6.50-14 | 190 | 535 | 1.6 | 1.30 | TR13/TR15 |
| 8 | 6.00/6.50-15 | 200 | 570 | 2 | 1.50 | JS1/JS75/TR75A/TR13/TR15 |
| 9 | 7.00-15 | 222 | 570 | 1.5 | 1.45 | TR13 |
| 10 | 7.25/7.50-15 | 222 | 570 | 1.5 | 1.45 | TR13/TR15/TR75A |
| 11 | 6.00/6.50-16 | 200 | 600 | 2 | 1.60 | JS1/JS75/TR76A/TR15 |
| 12 | 7.00-16 | 220 | 600 | 2 | 1.85 | TR13/TR15/JS75/ TR177A/TR75A |
| 13 | 7.50-16 | 230 | 600 | 1.9 | 2.00 | JS75/ TR177A/TR75A/TR15 |
| 14 | 8.25-16 | 250 | 610 | 1.7 | 2.10 | TR177A / TR75A |
