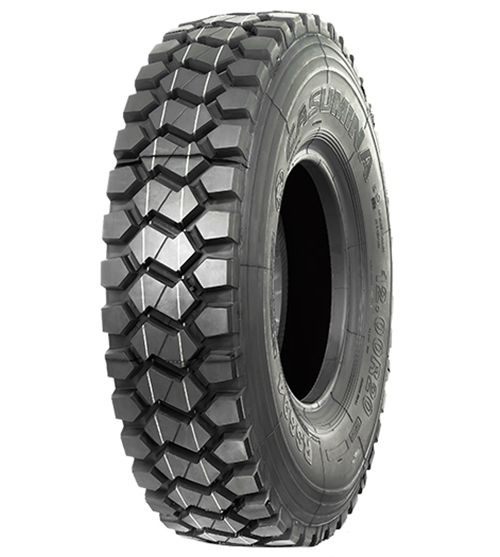

RS694
DESCRIPTION
– Tires running bad terrain, works, mines, rock …
FEATURES
– Meets standards: Jis D4230
– special steel structure high load, impact resistance.
– Tires are designed with large spines horizontal grooves asymmetrical sides, high load bearing, good friction, anti-slip horizontal
– The running wide, zone large spikes tire shoulders rigid, load-bearing, good heat dissipation, reduced tank thorn zone, extends to life, high durability.
– Suitable for trucks, vehicles running forest roads, mines, rocks.
SPECIFICATIONS
| No | Size | PR | Type | Index | Inflation pressure | Max. Load | Max. Speed | Width | Overal diameter | Tread depth | Weight | Rim width | |||
| TT/TL | Load | Speed | kgf/cm2 | PSI | Single/kg | Dual/kg | km/h | mm | mm | Mm | kg | inch | |||
| 1 | 9.00R20 | 16 | TT | 144/142 | K | 8.9 | 128 | 2800 | 2650 | 110 | 249 | 1034 | 19.7 | 7.00 | |
| 2 | 9.00R20 | 18 | TT | 149/146 | F | 9.0 | 128.01 | 3250 | 3000 | 80 | 249 (max 268) | 1034 (max 1038) | 19.77 | 56.574 | 7.00 |
| 3 | 10.00R20 | 18 | TT | 149/146 | F | 9.2 | 132 | 3250 | 3000 | 80 | 274.5 (max 286) | 1070 (max 1074) | 22.4 | 67.210 | 7.50 |
| 4 | 12R20 New | 20 | TT | 157/153 | F | 9.0 | 128 | 4125 | 3650 | 80 | 309 | 1104 | 24 | 83.2 | 8.5 |
| 5 | 12R22.5 | 18 | TL | 152/148 | F | 8.5 | 121 | 3550 | 3150 | 80 | 305 | 1082 | 24 | 71.5 | 9.0 |
| 6 | 12.00R24 20PR RS694 160/157F(E50) | 20 | TT | 160/157 | F | 9 | 128.01 | 4500 | 4125 | 80 | 304 | 1238 | 21.19 | 94.554 | 8.05 |
| 7 | 12.00R24 20PR RS694 160/157F(143) | 20 | TT | 160/157 | F | 9 | 128.01 | 4500 | 4125 | 80 | 304 | 1238 | 21.19 | 94.554 | 8.50 |
